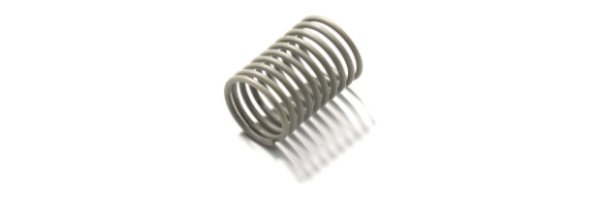

Hochtemperatur-Druckfedern aus Keramik
Artikelnummer
|
Aussen ø
|
Länge | Draht ø | Federrate | Prüflänge | Kraft bei L1 | Lager | |||
|---|---|---|---|---|---|---|---|---|---|---|
| Da | L0 | d | c | L1 | F1 | Verfügbarkeit | ||||
| [mm] | [mm] | [mm] | [N/mm] | [mm] | [N] |
|
||||
| 0NCS2-025L | 13.2 | 25.4 | 1.65 | 7.850 | 22.3 | 24.34 |
|
Details / Preise | ||
| 0NCS2-025S | 13.2 | 20.7 | 1.65 | 9.810 | 18.2 | 24.53 |
|
Details / Preise | ||
| 0NCS3-030L | 14.4 | 33.3 | 1.8 | 6.870 | 29 | 29.54 |
|
Details / Preise | ||
| 0NCS3-030S | 14.4 | 24 | 1.8 | 9.810 | 21 | 29.43 |
|
Details / Preise | ||
| 0NCS4-050L | 17.6 | 34.7 | 2.2 | 9.810 | 29.7 | 49.05 |
|
Details / Preise | ||
| 0NCS4-050S | 17.6 | 27.4 | 2.2 | 12.750 | 23.6 | 48.45 |
|
Details / Preise | ||
| 0NCS1-020L | 18.4 | 26.5 | 1.65 | 2.450 | 18.5 | 19.6 |
|
Details / Preise | ||
| 0NCS1-020S | 18.4 | 14.3 | 1.65 | 4.910 | 10.3 | 19.64 |
|
Details / Preise | ||
| 0NCS5-060L | 20 | 43.4 | 2.5 | 9.810 | 37.4 | 58.86 |
|
Details / Preise | ||
| 0NCS5-060S | 20 | 30.1 | 2.5 | 14.720 | 26.1 | 58.88 |
|
Details / Preise | ||
| 0NCS6-080L | 22.4 | 49.7 | 2.8 | 10.790 | 42.4 | 78.77 |
|
Details / Preise | ||
| 0NCS6-080S | 22.4 | 33.4 | 2.8 | 16.680 | 28.7 | 78.4 |
|
Details / Preise |
Unsere Keramikdruckfedern sind für Federanwendungen im Hochtemperaturbereich oder in aggressiven Umgebungen geeignet wie beispielsweise für Sensoren.
Keramik Druckfeder Eigenschaften
Die Keramikdruckfedern sind hoch hitzebeständig, verschleißfest, unmagnetisch, korrosionsbeständig und isolierfest
Keramik Druckfeder Temperatur
Die Festigkeit von Keramikfedern bleibt nahezu konstant bei Temperaturen bis ca. 1000° Celsius
Keramik Druckfeder Material
- Silizium Nitrit Si3N4
Keramik Druckfeder Anwendungen
- Raumfahrt
- Löttechnik
- Medizintechnik
- Elektronik
- Sensorik
