Federstähle gerichtet
Artikelnummer
|
Draht ø
|
Länge | Zugfestigkeit | Werkstoff | Bezeichnung | Lager | |||
|---|---|---|---|---|---|---|---|---|---|
| d | L | Rm | Verfügbarkeit | ||||||
| [mm] | [mm] | [N/mm²] |
|
||||||
| 0FD0070-G1000-A4 | 0.7 | 1000 | >1850 | 1.4571 | V4A |
|
Details | ||
| 0FD0070-G1000-CD | 0.7 | 1000 | >2360 | 1.1200 | SH/DH |
|
Details | ||
| 0FD0080-G1000-A2 | 0.8 | 1000 | >1900 | 1.4310 | V2A |
|
Details | ||
| 0FD0080-G1000-A4 | 0.8 | 1000 | >1800 | 1.4571 | V4A |
|
Details | ||
| 0FD0080-G1000-CD | 0.8 | 1000 | >2310 | 1.1200 | SH/DH |
|
Details | ||
| 0FD0090-G1000-A2 | 0.9 | 1000 | >1900 | 1.4310 | V2A |
|
Details | ||
| 0FD0090-G1000-A4 | 0.9 | 1000 | >1800 | 1.4571 | V4A |
|
Details | ||
| 0FD0090-G1000-CD | 0.9 | 1000 | >2270 | 1.1200 | SH/DH |
|
Details | ||
| 0FD0100-G1000-A2 | 1 | 1000 | >1900 | 1.4310 | V2A |
|
Details | ||
| 0FD0100-G1000-A4 | 1 | 1000 | >1800 | 1.4571 | V4A |
|
Details | ||
| 0FD0100-G1000-CD | 1 | 1000 | >2230 | 1.1200 | SH/DH |
|
Details | ||
| 0FD0110-G1000-A2 | 1.1 | 1000 | >1800 | 1.4310 | V2A |
|
Details |

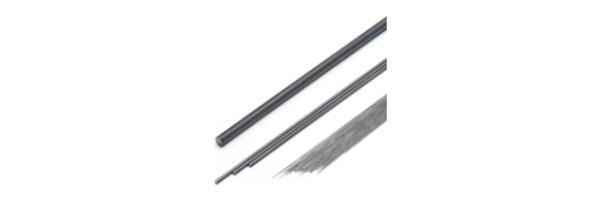

Für Ihren Musterbau liefern wir Ihnen gerichteten Federstahl, rostfreien Federstahl in unterschiedlichen Abmessungen.
Federstahl Anlass-Temperaturen
- 1.1200 - Federstahl - 280°C - 0,5 Stunde Luftabkühlung
- 1.4310 - Rostfreier Federstahl - 380°C - 0,5 Stunde - Luftabkühlung
- 1.4568/1.4571 - Rostfreier Federstahl - 450° C - 1,0 Stunde - Luftabkühlung
